Robot Reach Reinforcement Learning

Trained a PPO reach goal policy for UR10 robot using IsaacLab

In this project, I designed a robot arm using UR10 robot and gripper usds. I created joint links from UR10 to gripper creating an appropriate robot for simulation.

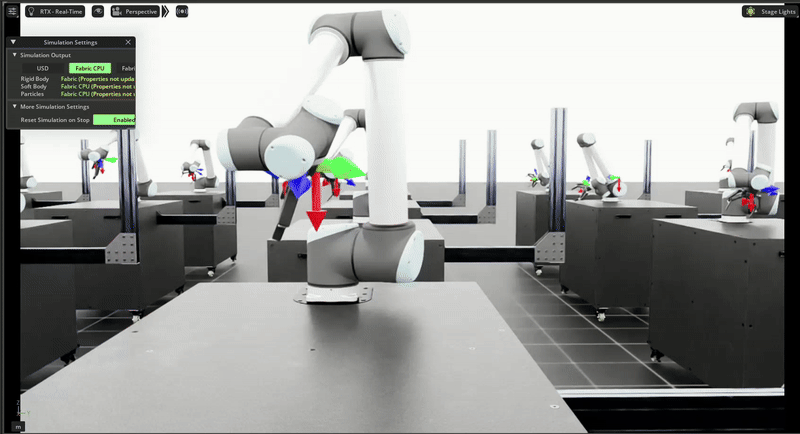

I trained a PPO reach policy that enabled the robot to reach the desired location on 2000 robotis at once using IsaacLab.

Robot Creation

For this project I needed a arm robot with a gripper attached. So I used a UR10 and fitted a gripper using IsaacSim's Robot Assembler tool. It made attaching a joint at the right pose really easy. Additionally, creation of a join was even easier!

Project Creation

IsaacLab has made RL project creation reall easy! There is a helper script ./isaaclab.sh which one can use to create a project with latest RL algorithms that support both Single agent and multi agent.

To create project just run ./isaaclab.sh --new; follow the installer to your liking and then install the project you created eg.python -m pip install -e source/Reach

Robot Articulation

Create a file like ur_gripper.py at Reach/source/Reach/Reach/tasks/manager_based/reach. This file is were I created the articulation of the robot. ie robot location, initial pose and velocities, dampness adn joint definitions.

Training Environment Creation

I created a reach_env_cfg.py file. This file contains the following classes:

  1. ReachSceneCfg

    Defines the simulation scene: which assets (UR10, gripper, target markers) exist, their initial poses, scales, collision/physics properties, and how they’re spawned. In short, it lays out the world at reset.

  2. ActionsCfg

    Specifies the agent's action space and how policy outputs map to robot control (e.g., joint position/velocity/torque commands or end-effector Δpose). Includes limits, scaling, and optional action post-processing (clipping, smoothing).

  3. CommandsCfg

    Defines task-level goals or commands provided to the environment each episode (e.g., a target 3D position to reach). Often randomizes goals to improve generalization and can schedule command sources (fixed, random, scripted).

  4. ObservationsCfg

    Declares the agent's observations (state input): joint angles/velocities, end-effector pose, target pose, contact flags, optional vision features, etc. Also where you configure stacking, normalization, and observation filtering.

  5. PolicyCfg

    Describes the RL policy/model configuration: network architecture (MLP/CNN), hidden sizes, activations, and output dimensions matching the action space. May also include optimizer and learning-rate choices depending on the training stack.

  6. EventCfg

    Sets up events that perturb or randomize the environment (domain randomization, pushes, lighting/texture changes) at reset or on timers. Useful for robustness and sim-to-real transfer.

  7. RewardsCfg

    Defines the task's reward function: weighted terms such as distance-to-target, alignment/orientation, action penalty, smoothness, success bonus, and failure penalties. Drives the behavior the policy learns.

  8. CurriculumCfg

    Implements curriculum learning: starts easier (e.g., closer targets, fewer disturbances) and gradually increases difficulty as performance improves by adjusting randomization ranges, success thresholds, or time limits.

  9. TerminationsCfg

    Lists episode termination conditions: success (target within tolerance), failure (out-of-bounds, singularity, instability), or timeout (max steps). Controls when the env resets and logging of outcome labels.

  10. ReachEnvCfg

    The top-level environment configuration that composes all the above configs. Also where you set global sim params (dt, substeps), number of parallel envs, and task-specific toggles. It’s the “master recipe” for the reach task.

Rewards

Now that the core skeleton of the simulation is done, I had to design a reward logic for the Reinforcement Learning. I created 2 reward functions:

  1. position_command_error: This reward function calculates the distance of the end effector from the commanded position and uses that as the negative reward.
  2. orientation_error: This reward function calculates the magnitude of the quaternion distance between the end effectors orientation and the commanded orientation and uses that as the negative reward.
As you must have noticed, I ran first only negative rewards. I noticed that the model was taking too long to converge. Additionally, the trained model was a bit off from the goal. I realized that this was because there is no benifit to the model to Reach the exact goal so it would be content by just reaching near it. so I changed the reward functions to give a positive reward as it got closer to the goal!

skrl_ppo Config

For this project I used Skrl PPO backbone that is supported by IsaacLab. You can find my working config for this at https://github.com/eltonlemos/ReachRobot/blob/main/agents/skrl_ppo_cfg.yaml

Notes and Comments

In this project I was able to learn how to assemble a robot using IsaacSim's Robot Assembler

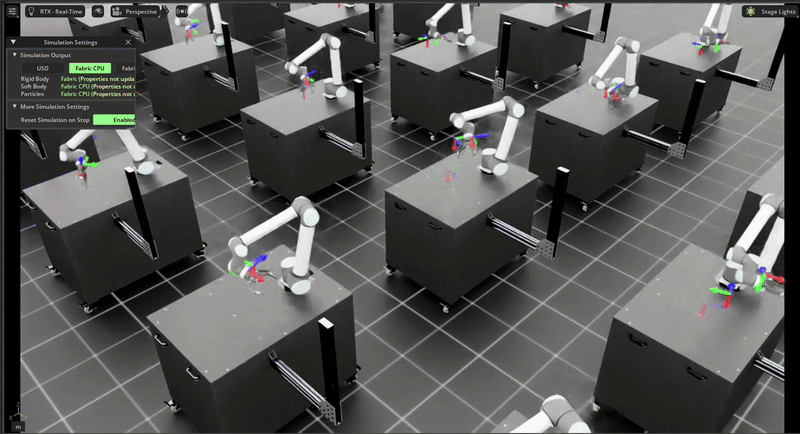

I was able to create a Simulation environment and train a policy on 2000 robots at once!

I am really impressed by how easy IsaacLab makes it to use RL backbone libraries on their platform.
